Single Stage Rotary Vane Vacuum Pump

HPDMC Single stage belt driven pumps designed to operate at lower RPM allowing them to run cooler and reach an ultimate vacuum of 1 x 10-4 Torr. Lower speed operation also reduces the wear on the pump components ensuring a longer life. All pumps are equipped with a gas ballast. Pumps operate on 115V, 60Hz and can be ordered for 230V operation.Long Service Life due to Low Pump RPM

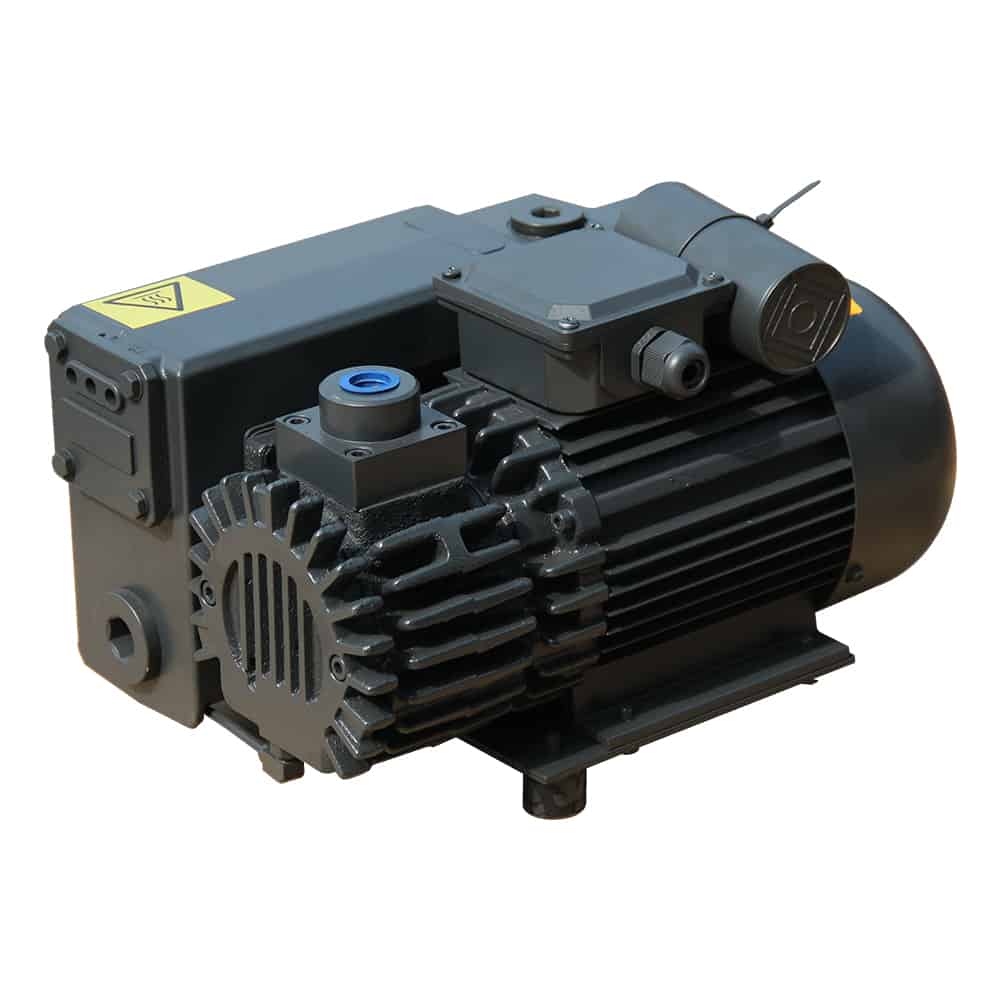

  • Model XD-020
  • Rate Speed 11.7cfm
  • Ulmost Pressure 15-75psi
  • Noise 62dB(A)
  • Work Temperature for Oil 82℃
  • Oil Consumption 0.5L
  • Napor Permitted Pressure 580psi
  • Suction Rate of Vapour 0.3kg/h
  • Connection of Inlet NPT 3/4 inch
  • Motor Rate Power 1hp
  • Motor Rage Rotating Speed 2880 rpn
  • Weight 40lbs
  • L-W-H 18.6-9.2-7.9 inch
  • Model XD-040
  • Rate Speed 23.4cfm
  • Ulmost Pressure 15-75psi
  • Noise 64dB(A)
  • Work Temperature for Oil 83℃
  • Oil Consumption 1.5L
  • Napor Permitted Pressure 580psi
  • Suction Rate of Vapour 0.6kg/h
  • Connection of Inlet NPT 1/4 inch
  • Motor Rate Power 2hp
  • Motor Rage Rotating Speed 1440 rpn
  • Weight 106lbs
  • L-W-H 25.6-11.8-11 inch

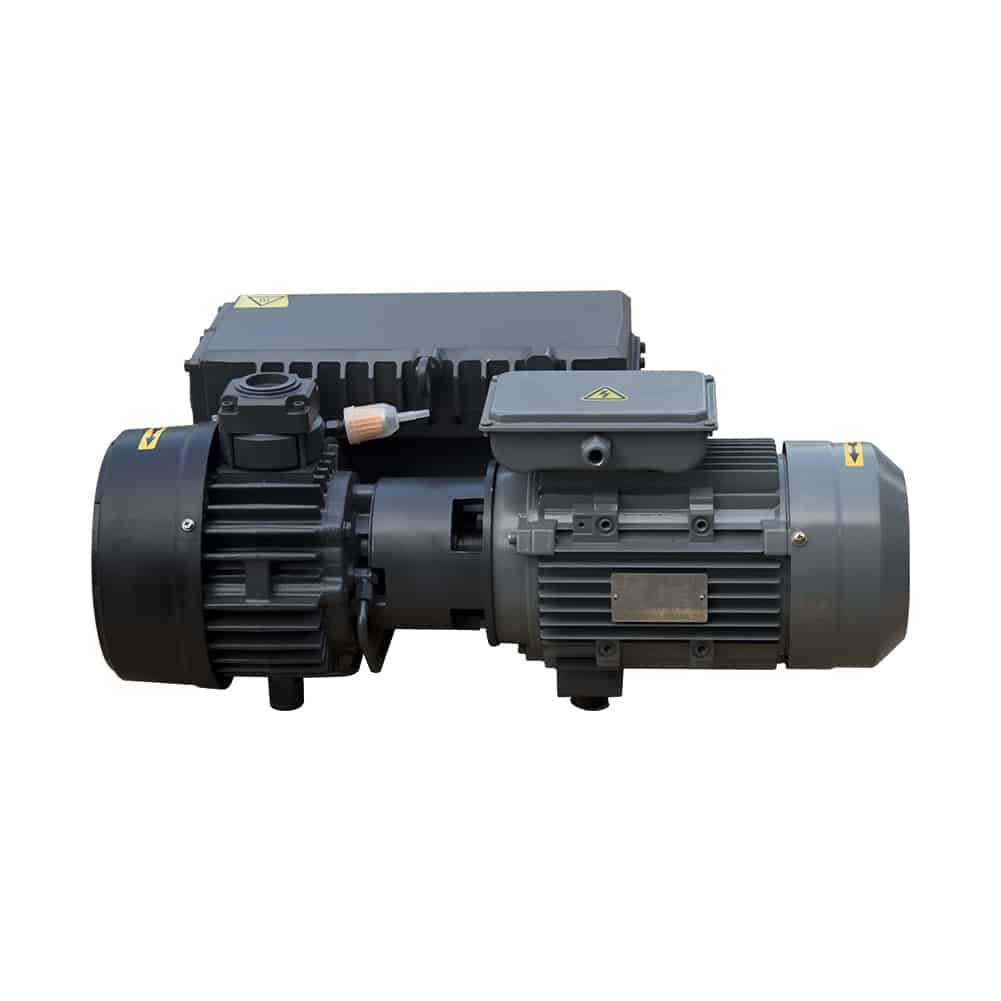

  • Model XD-060
  • Rate Speed 36.8cfm
  • Ulmost Pressure 15-75psi
  • Noise 64dB(A)
  • Work Temperature for Oil 83℃
  • Oil Consumption 1.5L
  • Napor Permitted Pressure 580psi
  • Suction Rate of Vapour 0.6kg/h
  • Connection of Inlet NPT 1/4 inch
  • Motor Rate Power 2hp
  • Motor Rage Rotating Speed 1440 rpn
  • Weight 128lbs
  • L-W-H 25.6-16.9-11 inch
  • Model XD-100
  • Rate Speed 58.4cfm
  • Ulmost Pressure 15-75psi
  • Noise 66dB(A)
  • Work Temperature for Oil 85℃
  • Oil Consumption 2L
  • Napor Permitted Pressure 580psi
  • Suction Rate of Vapour 1.6kg/h
  • Connection of Inlet NPT 1/4 inch
  • Motor Rate Power 4hp
  • Motor Rage Rotating Speed 1440 rpn
  • Weight 159lbs
  • L-W-H 28.4-16.9-11 inch
